  All Products  »  Radio / walkie talkie  » Digital Radio  » TYTERA MD-280 UHF 400-480MHz DMR Digital Two-Way Radio
TYTERA MD-280 UHF 400-480MHz DMR Digital Two-Way Radio

Item ID: MD280
Item Name: TYTERA MD-280 UHF 400-480MHz DMR Digital Two-Way Radio
Our Price: USD 181.50  *Shipping Cost Included
Ships to: Worldwide



  Description




MD280

TYTERA MD-280 UHF 400-480MHz DMR Digital Two-Way Radio

※This radio is compatible with Motorola DMR radio

Main Features:

Use Time-Devision Multi-Access (TDMA) digital technology

High/Low power selective

Single call, Group call, All call function

Voice prompt

Monitor

32 channels

Low power alarm

SQL

VOX function

Wide/Narrow bandwidth selectable

Lone work

Channel scanning/Priority scanning

End-tone elimination

Emergency alarm

Programmable multifunction key

TOT

Voice encryption

Talk around

Digital and Analog combined





Specification:



Item number

MD-280

General

Frequency Range

400-480MHz

Channel No.

32

Channel Spacing

12.5KHz

Antenna Impedance

50Ω

Operating Voltage

7.5 V

Operating Temperature

-30°C+60°C

Audio Output Power

≤1000mW@16Ω

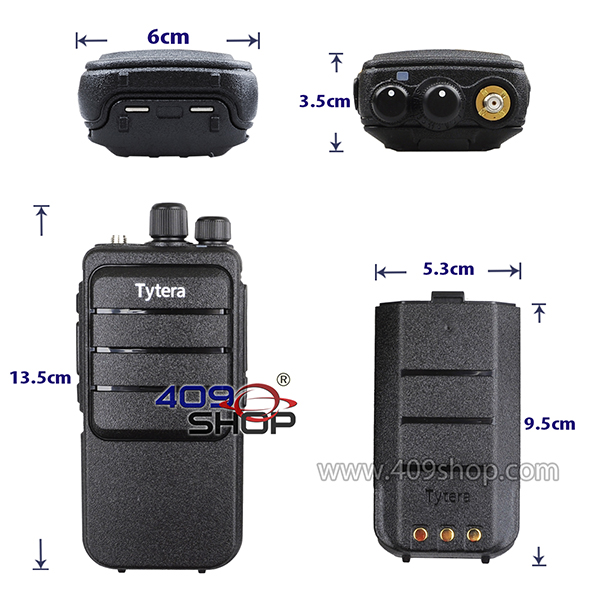

Dimension(W x H x D)

128x61x38mm(not including Antenna)

Battery

1700mAh Li-ion

Transmitter

Output Power

High: ≤5W   Low:≥1W

Vocoder Type

AMBE+2TM

Frequency Stability

± 1.0 PPM

Adjacent Channel Power

≤-60dB

Free Time Slot Power

TDMA: ≤-57dBm

Spurious Radiation

Antenna:9KHz-1GHz , ≤ -36dBm

        1GHz-12.75GHz , ≤-30dBm

Hum and noise

-40dB @12.5KHz

4FSK Digital Mode

 12.5KHz(data only):7k60FXD

 12.5KHz(data+voice)7k60FXE

Modulation Maximum Deviation

2.5KHz@12.5KHz

Modulation BER(Bit Error Rate)

≤5%

Receiver

Analog Sensitivity

0.35uV/-116dBm(20dB SINDA)

0.22uV/-120dBm(Type)

Digital Sensitivity

0.3uV/-117.4dBm(BER 5%)

0.22uV/-100dBm(BER 1%)

Co-channel Rejection

≥-12dB

Rated Audio Distortion

3%(TYPE)











Photo will have chromatic aberration compared with the product

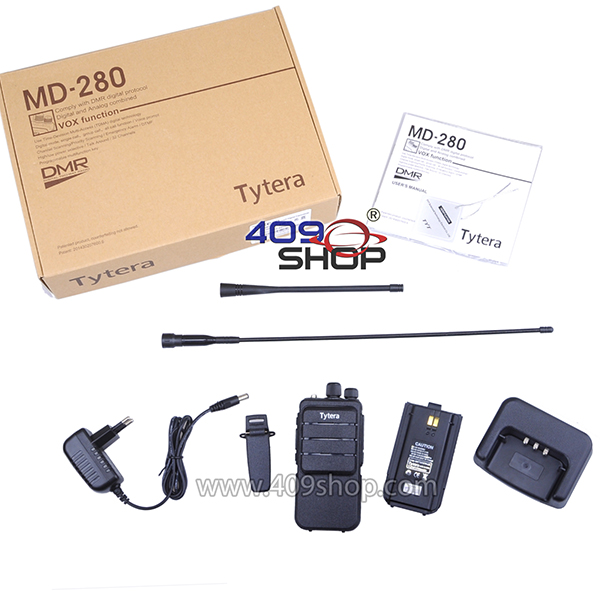

Each Set PACKAGE CONTAIN
  • 1xTYTERA MD-280 UHF 400-480MHz Digital Two-Way Radio

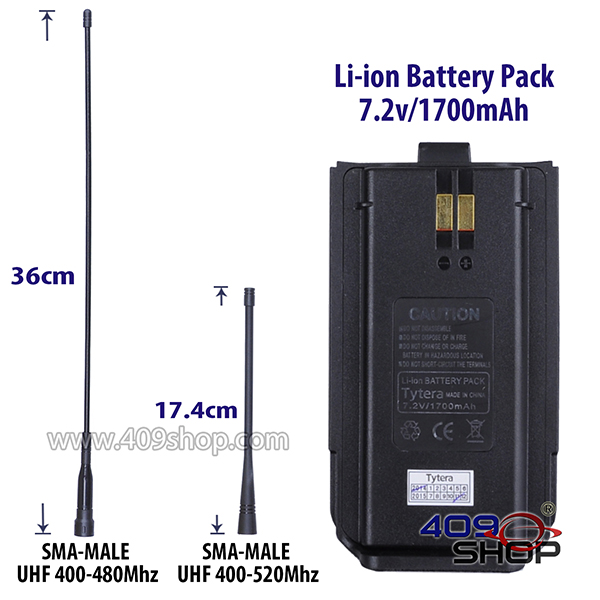

  • 1 x 7.2v 1700mAh Li-ion Battery

  • 2 x SMA-male Antenna

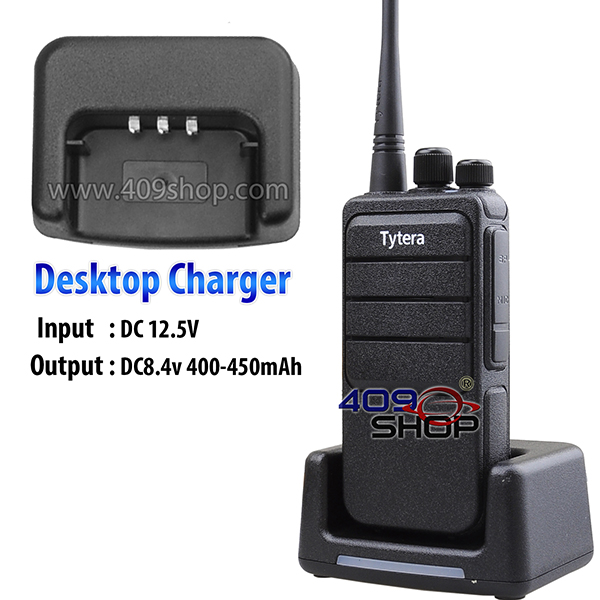

  • 1 x Charger
  • 1 x Charger Adapter / PSU plug
  • 1 x Belt Clip.
  • 1 x ENG Manual

PY



 We can supply 4 different WALL PSU suit your country:
